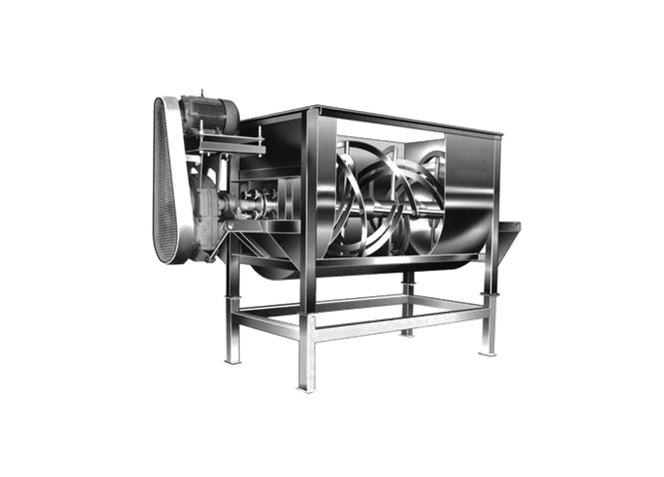

Skyline Ribbon Blender
Skyline Ribbon Blender commonly known as horizontal ribbon mixer machine
perform mixing through ribbon blades.
The name of equipment ribbon
blender derived from its ribbon shaped blades uses for mixing process.
Machine

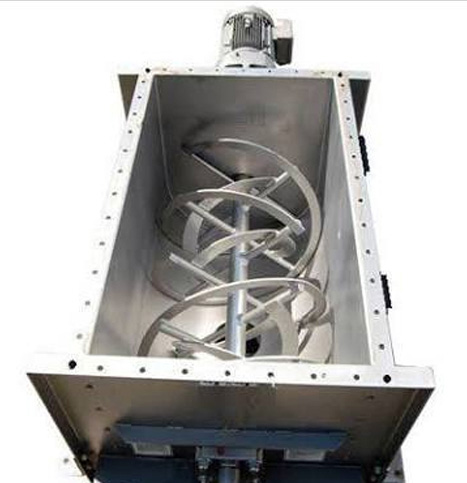

having U shaped bowls in which ribbon shaped blades welded onto one pipe
shaft. This pipe shaft is rotated through external motor and gearbox.
Suitable
size bearing and pedestal block provided for smooth rotation of shaft.
Ribbon
mixers are available in different capacities ranging from just one liters to several
cubic meters.
Working Principles
>> Material is fed from the top cover of the machine. Manual loading can be
performed or we can offer optionally auto feeder for loading materials inside the
bowl.
>> As material process in both directions, there is homogeneous mixing performs
in each time. After mixing process material get discharges from slide gate valve
provided at bottom shell of the equipment.
