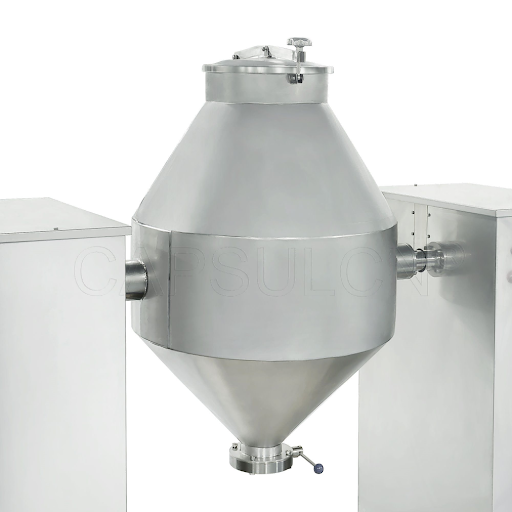

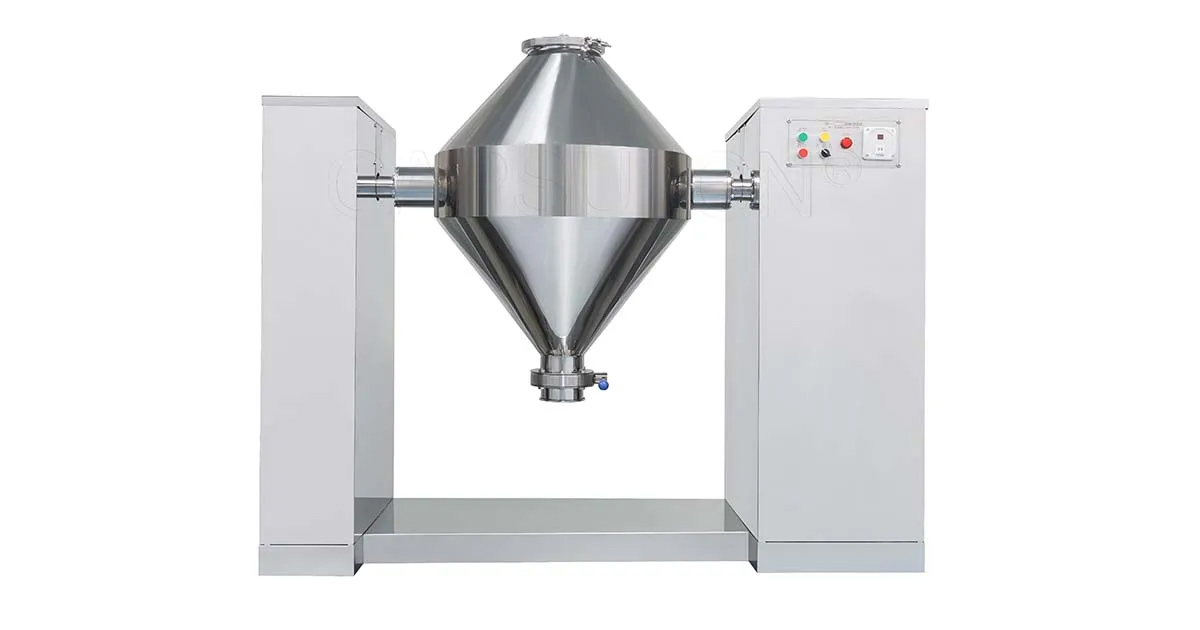

Skyline Double Cone Blender
Skyline Double Cone Blender is an efficient and versatile equipment for mixing
of Power such as pharmaceutical excipients, various chemicals, food products
homogeneously.
With an effective volume for optimum homogeneity between
35-70% of gross volume, and a SLANT double cone design that eliminates dead
spots, this Double cone blender is ideal across various industries including
pharmaceutical, food, chemical, cosmetics, etc.
Working Principles
>>Double Cone blender features a stainless-steel vessel that comes in two cones
welded together.

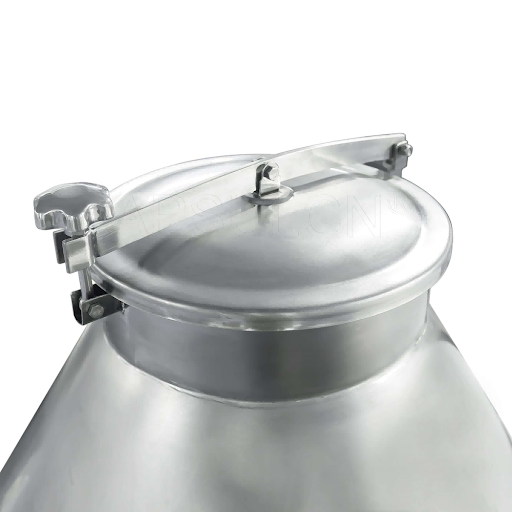

>> The vessel has openings at both ends. The opening at one end is designed with a
removable cover for easy loading and cleaning of materials. At the same time, a

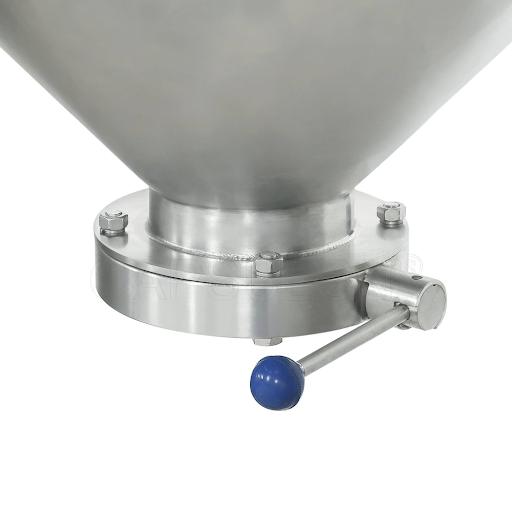

butterfly valve is mounted at the other end, allowing for quick discharging of
the mixture.
>>The interior of the blender is also fully welded and well polished. The blender
comes without dead angles inside the vessel thanks to the unique double-cone
shape.
>> Besides, there is a shaft running through the body of the double cone vessel.
Depending on the properties of materials, some blenders come with paddle-type
baffles along the shaft to enhance mixing efficiency.
>> The materials to be blended are transferred into the double cone vessel using
manual loading or a vacuum system. Keep feeding the materials until two-thirds
of the volume of the blender is filled.
>> When the materials are ready, the blender starts to work. The double
cone rotates about a horizontal axis on the shaft. The particles are constantly
tumbled and intermixed in the vessel to achieve a homogeneous blend.
>> The blender performs a 360-degree continuous rotation to get homogeneous
mixtures.
