An OINTMENT is a preparation of a medication for topical use that contains an oil base essentially a preparation of water in oil.

Working Principles

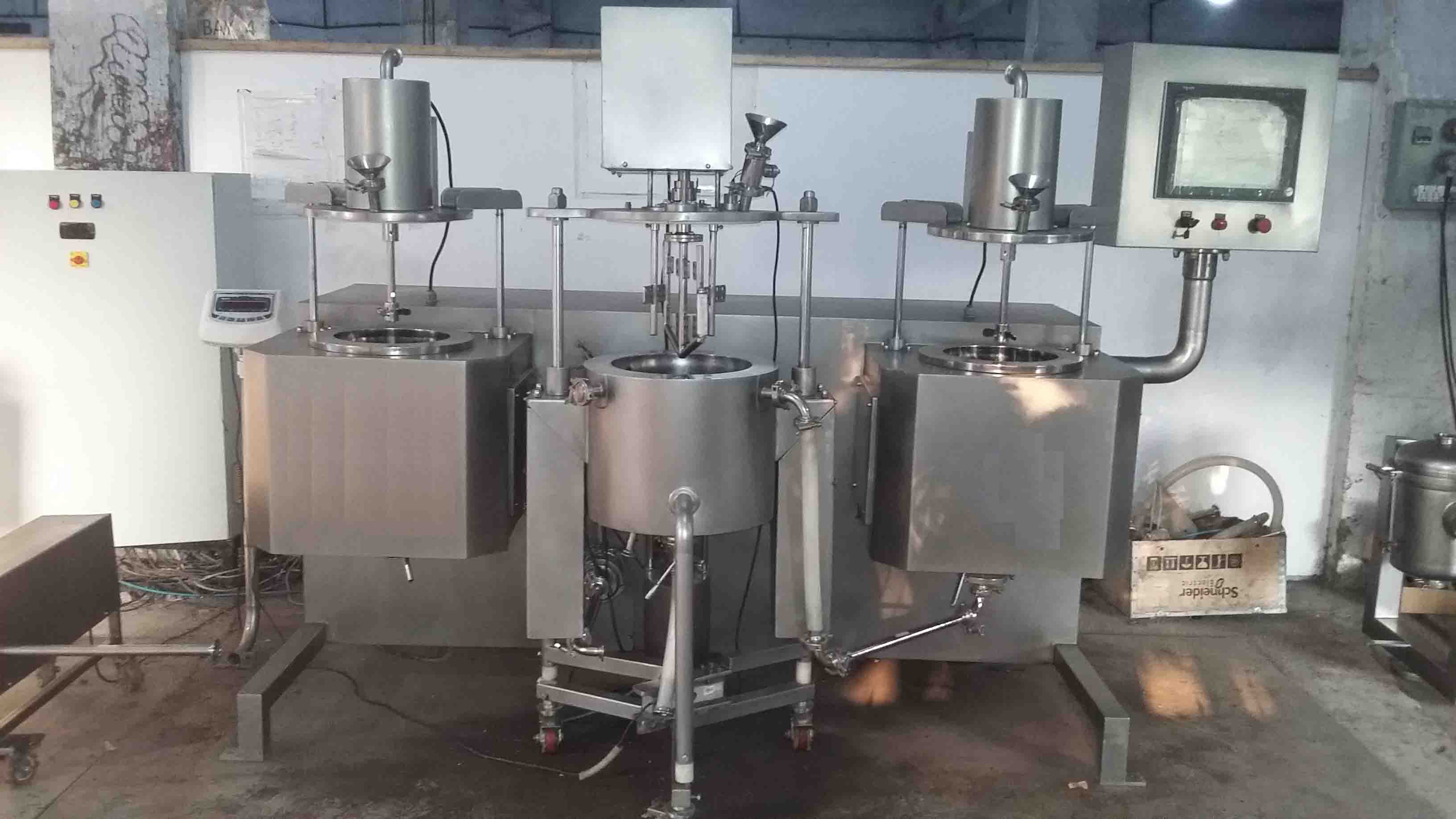

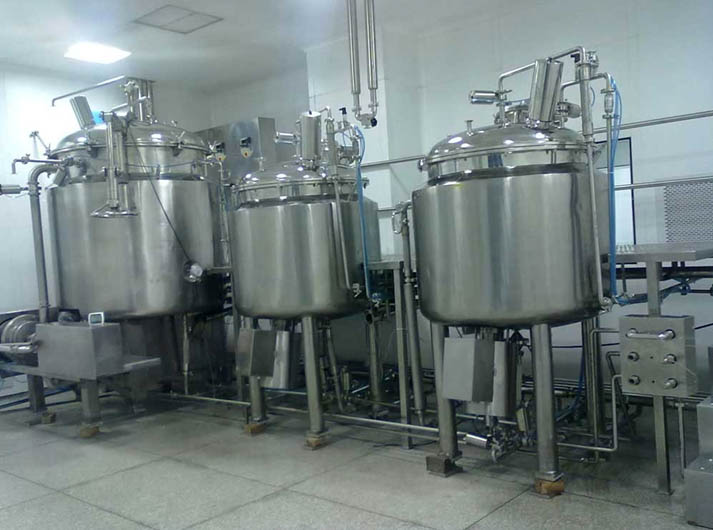

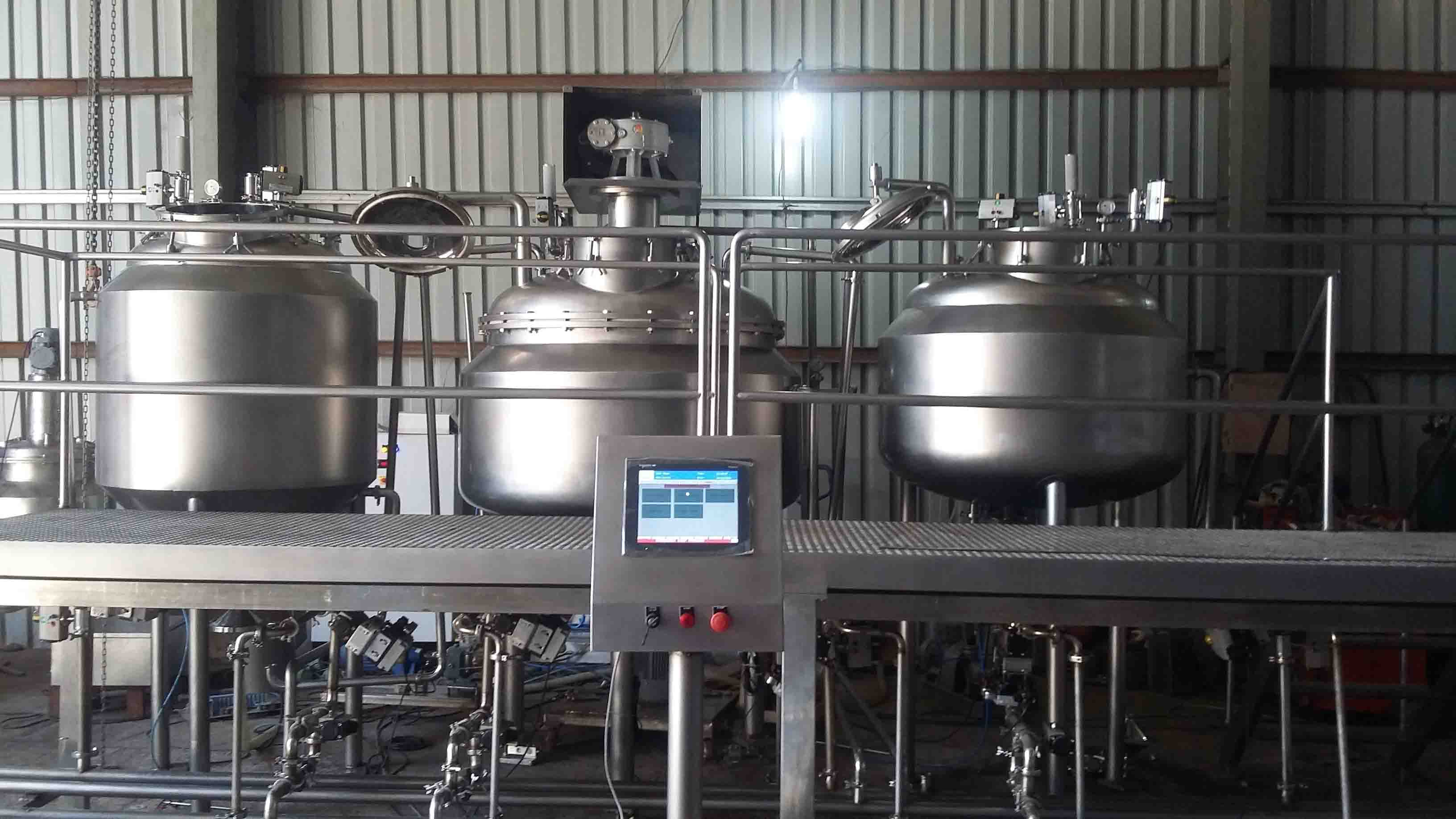

>> The Ointment Manufacturing Plant consists of a set of equipment’s designed for ointments, gels, creams and lotions for capacities ranging from 5 kg to 1000 kg.
>> Water Phase Vessel: The Water Phase Vessel is a jacketed cylindrical tank with tori spherical dish ends. A propeller type stirrer is provided for agitating the liquid.
>> Wax Phase Vessel: The Wax Phase Vessel is a jacketed cylindrical tank with tori spherical dish ends. A propeller type stirrer is provided for agitating the wax or oil. A conical filter filters out impurities before the wax is transferred to the manufacturing vessel.
>> Manufacturing Vessel: The Manufacturing Vessel is a jacketed cylindrical vessel with a conical bottom and anchor type agitator. It is used to mix the viscous product from the Water and wax phase vessels.
>> Homogenizer: The Homogenizer Tank or Online is used with the manufacturing vessel to reduce particle size and promote uniform mixing.
>> Storage Vessel: The Storage Vessel is a tank with a conical bottom in which the product is collected and stored until it has to be transferred to the filling line. It can be provided with an anchor type stirrer and a jacket as per requirement.
>> Transfer Pump: The Transfer Pump (twin lobe) is used to transfer the product from the manufacturing vessel to the storage vessel.

Features

• Scalability
• Single & multi vessel design with interchangeable customized units
• Stationary and mobile options
• Compact ergonomic design
• Automized operative controls
• Pat enabled units
